Bird Bath Optical Module for AR Display Precision

When it comes to augmented reality (AR), the quality of your optical module determines the clarity, accuracy, and comfort of the entire experience. One of the most widely adopted and reliable solutions in near-eye display systems is the Bird bath optical module—an innovation that blends performance, simplicity, and compactness.

From smart glasses to head-up displays (HUDs), this optical architecture is helping redefine how we experience digital overlays in the real world. If you're developing an AR device or evaluating optical engines for integration, understanding the role and value of the bird bath module is essential.

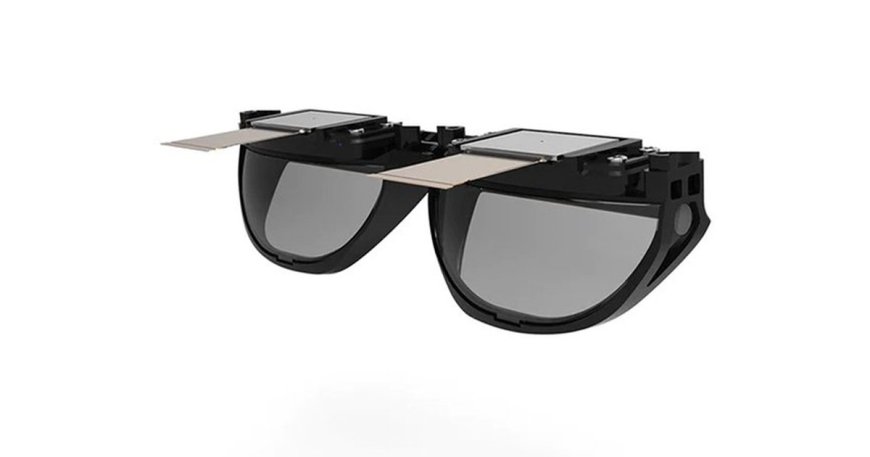

The bird bath optical module is an optical setup that uses a beam splitter and a spherical mirror to reflect and project digital images directly into the user’s field of view. It gets its name from its birdbath-like layout: a concave mirror facing up and a flat beam splitter positioned above it.

This module architecture is popular in AR systems because it offers a lightweight, cost-effective, and relatively simple way to achieve immersive visual projection without compromising image quality.

Key components typically include:

• Beam splitter: Reflects and transmits light simultaneously, allowing the digital image and real-world view to combine.

• Concave mirror: Enlarges the projected image and directs it into the user’s eye.

• Display source: Usually a microdisplay (LCD, OLED, or Micro OLED).

The result is a compact, see-through optical engine capable of rendering virtual images overlaid on the real environment—ideal for consumer, industrial, and enterprise AR solutions.

Why Is It So Widely Used in AR Devices?

The bird bath module strikes a great balance between performance and manufacturability. Here’s why AR designers prefer it:

1. Compact Design
   Its folded optical path reduces the physical depth required for projection, allowing slimmer and lighter AR glasses.

2. High Image Quality
   It supports high contrast and brightness, even in varying light conditions—critical for outdoor AR usage.

3. Wide Field of View (FOV)
   It enables a relatively wide FOV without needing bulky lenses or complex optics.

4. Low Cost and Easy Integration
   Compared to more complex waveguide or holographic modules, the bird bath system is simpler to produce and scale.

Common Use Cases and Applications

You’ll find bird bath optical modules in a growing number of real-world applications, including:

• Smart AR Glasses: For navigation, translation, gaming, and real-time data display.

• Industrial Wearables: For heads-up maintenance instructions, real-time diagnostics, or remote support.

• Head-Up Displays (HUDs): Used in vehicles or aviation for projecting navigation or flight data.

• AR Training & Simulation: Providing immersive learning environments for medical, military, or technical fields.

Its versatility and relatively low entry cost make it a go-to choice for both prototyping and mass production.

Where to Find High-Quality Bird Bath Optical Modules

Not all optical modules are created equal. Material quality, coating precision, and assembly accuracy play a huge role in the final AR experience. That’s why it’s important to source from trusted providers who specialize in advanced optics.

ARVR Optical offers a selection of advanced Bird bath optical module solutions tailored for next-generation AR applications. Designed for clarity, durability, and performance, their modules are ideal for developers looking to build reliable and high-impact AR devices.

Final Thoughts

The bird bath optical module has proven itself as a dependable and effective component in AR technology. Its simple yet powerful design allows innovators to create lightweight, high-performance AR glasses and HUDs that bridge the digital and physical world seamlessly.

Whether you're designing smart eyewear for consumers or building mission-critical wearables for industrial use, this optical module architecture offers the clarity, efficiency, and integration you need.

Ready to take your AR device to the next level? Explore the latest in optical module innovation at ARVR Optical.
